What are 3 tips for choosing the right material for a CNC part? Characteristics and Application

Choosing the right material for your CNC parts is a critical step in ensuring the success of your project. The material influences the performance, cost, and manufacturability of the final product. With so many materials available, how do you determine which one is the best for your specific needs? Here are three essential tips to guide your selection.

When choosing a material for CNC machining, consider factors such as strength, machinability, and cost. Choose materials that best suit the intended function and manufacturing requirements of the part.

To make the best choice, you need to understand your material options. Let’s explore some key materials and what you should know before making your decision.

What materials are suitable for CNC?

The material you choose for your CNC part can significantly affect its performance and ease of machining. So, what materials are typically suited for CNC machining?

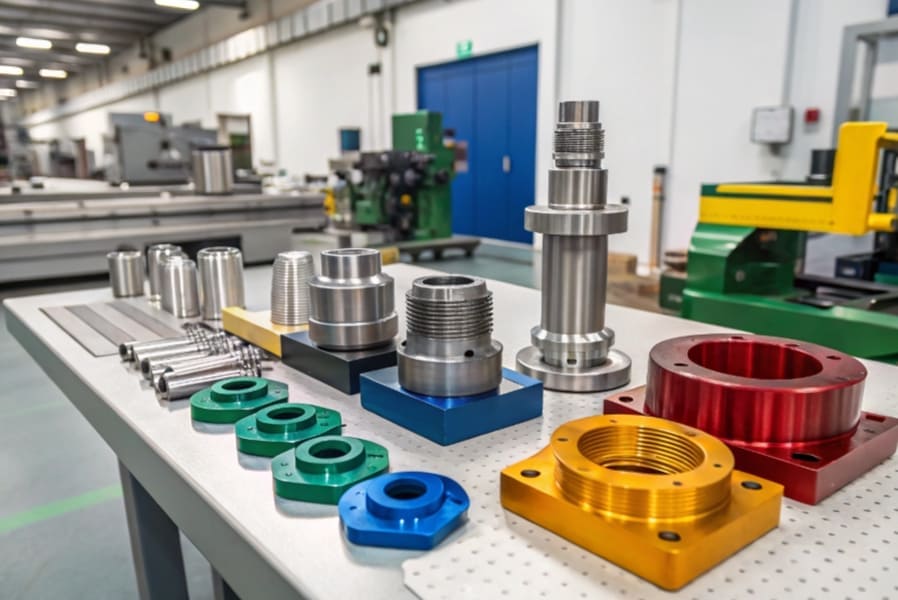

Common materials for CNC machining include metals like aluminum, stainless steel, and titanium, as well as plastics like ABS, nylon, and Polycarbonate¹.

Each material has unique properties that make it ideal for specific applications. Aluminum is lightweight and easy to machine, making it a popular choice for many parts. Stainless steel offers excellent durability and corrosion resistance, while titanium is often used for high-strength applications. For non-metallic parts, plastics like ABS and polycarbonate provide excellent machinability and are used in a variety of industries.

Why Aluminum is Popular for CNC?

Aluminum is often the go-to material because it is lightweight, strong, and easy to machine. Its versatility makes it a preferred choice in industries like aerospace and automotive. In addition, aluminum alloys like 6061 and 7075 are known for their excellent strength-to-weight ratio, which makes them ideal for structural parts in applications requiring high performance with minimal weight. Moreover, aluminum has a relatively low melting point, which reduces the overall energy costs during CNC machining.

The Role of Steel in CNC Machining

Steel is widely used for its strength and resistance to wear. However, it’s more challenging to machine than aluminum and requires more precise control. The wear resistance of steel also plays an important role in applications where friction or high stress is involved. Certain steel alloys, such as stainless steel, are particularly beneficial in environments where corrosion resistance is paramount, like in marine or chemical industries. However, steel’s hardness also demands high cutting forces and can lead to more rapid tool wear, which increases operational costs.

What is the hardest material to CNC?

When choosing materials for CNC machining, some are harder to work with than others. What makes a material hard to machine?

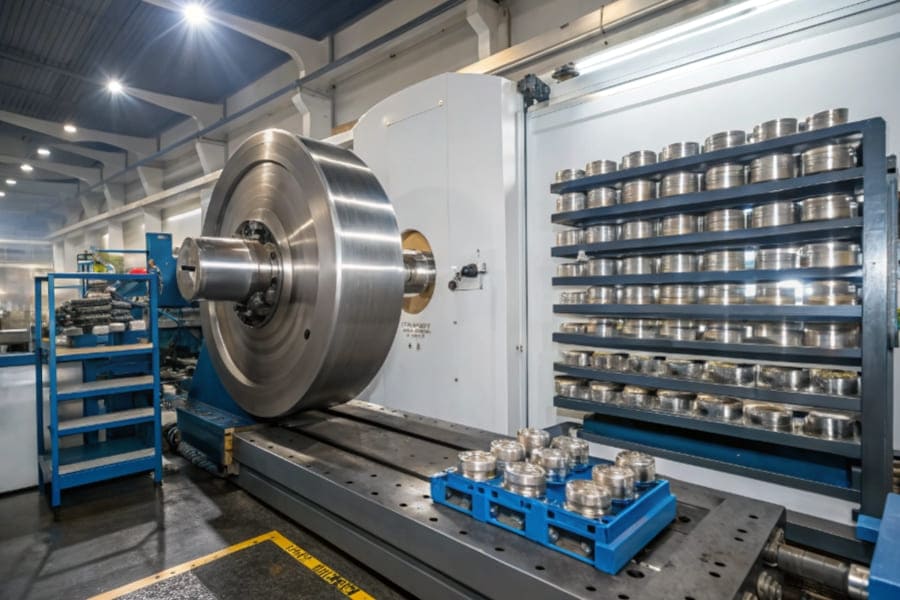

Titanium, cobalt-chrome, and hardened tool steels are some of the hardest materials to CNC due to their high strength and resistance to cutting tools.

Titanium is a lightweight but extremely strong material, commonly used in aerospace. However, it can cause rapid tool wear and requires precise machining methods. Cobalt-chrome alloys² are often used in medical and aerospace applications, while hardened tool steels offer excellent wear resistance but can be difficult to machine without specialized tools.

How Does Hardness and Wear Resistance Affect CNC Machining?

Harder materials, like titanium and cobalt-chrome, are known for their high wear resistance. This makes them ideal for parts that will experience constant friction or high-stress environments. However, their durability also means they wear down CNC tools faster. As a result, machining these materials requires specialized tools, slower speeds, and careful planning to avoid excessive tool wear. For instance, the extreme hardness of titanium means that carbide or ceramic cutting tools are often used in place of standard high-speed steel tools to extend tool life and maintain precision.

Tools and Techniques for Harder Materials

Carbide cutting tools, proper cooling, and slower machining speeds are often necessary when working with hard materials to prevent overheating and premature tool wear. Specialized coatings on cutting tools, such as Titanium nitride (TiN)³ or Diamond-like carbon (DLC)⁴, can also help improve tool performance when machining tough materials like titanium or hardened steel.

Which material is best for CNC carving?

CNC carving requires materials that are easy to shape into intricate designs. Which materials work best for this type of machining?

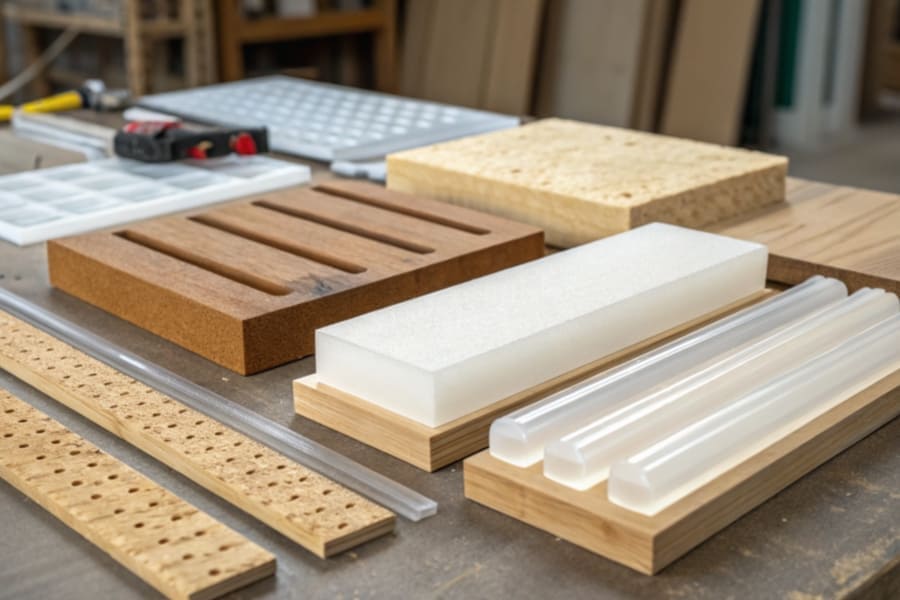

Wood, foam, and soft plastics like acrylic and HDPE are ideal for CNC carving due to their ease of machining and ability to hold fine details.

Wood is a classic choice for CNC carving because it is easy to machine and provides a smooth finish. Foam materials like EPS are great for prototyping, as they are soft and allow for complex 3D designs. Plastics such as acrylic offer excellent clarity and finish, making them a good choice for both functional and decorative carvings.

Why Choose Foam for CNC Carving?

Foam is a versatile material that is easy to carve and shape. It is ideal for making prototypes or artistic models due to its low density and ease of manipulation. Additionally, foam offers excellent dimensional stability during machining and is often used for creating models for architecture or automotive industries. The low density means that foam can be carved at higher speeds without excessive strain on the CNC machine.

Acrylic vs Wood for CNC Carving

While wood gives a natural finish and is often used for furniture or decor, acrylic is often selected for more modern applications due to its sleek, polished look. Acrylic, in particular, is highly popular in industries requiring transparent or aesthetically pleasing features, such as signage or display units. Wood, on the other hand, provides a more organic texture and can be sanded or polished to a smooth surface, making it suitable for bespoke furniture or traditional decor.

What is the best plastic to CNC?

Selecting the right plastic is crucial for ensuring both machinability and durability. Which plastics are best for CNC machining?

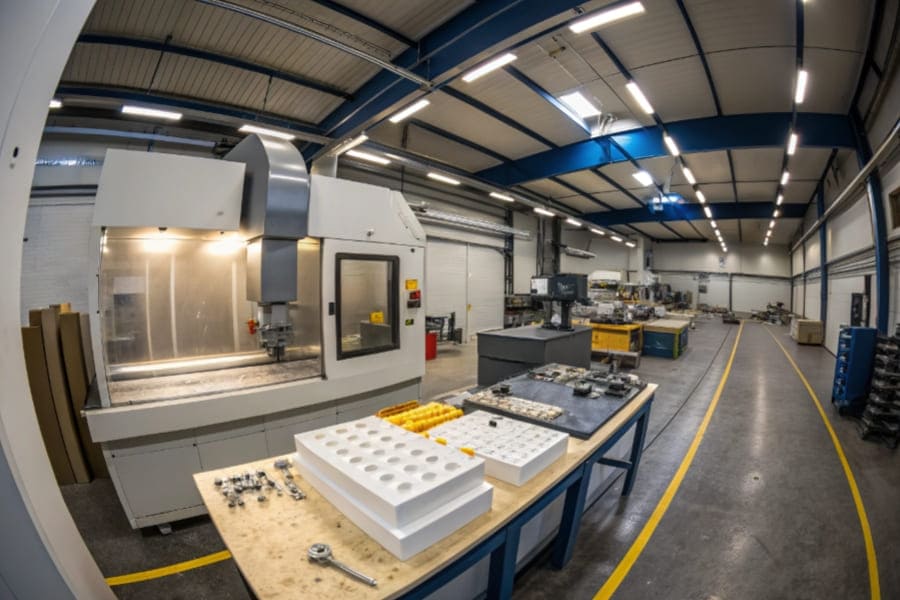

ABS, polycarbonate, and nylon are among the best plastics for CNC machining, offering good strength, impact resistance, and ease of machining.

ABS is commonly used for parts that need toughness and impact resistance, such as automotive components. Polycarbonate is preferred for applications requiring high impact strength and transparency, such as in lenses and protective covers. Nylon is durable and has low friction, making it ideal for mechanical parts.

ABS for Prototypes

ABS is often used for prototype parts due to its balance of cost and machinability. It’s easy to machine, and the final product has a smooth finish, making it ideal for testing designs. ABS’s resistance to impact and temperature fluctuations also makes it suitable for functional prototypes that need to simulate the conditions the final product will face in use.

Polycarbonate for Strength

Polycarbonate’s resistance to impact and high strength make it suitable for applications where durability is a priority, such as in industrial or consumer products. It is commonly used in protective covers, lenses, and other parts that need to endure wear and impact. Moreover, polycarbonate’s excellent optical clarity makes it a popular choice for applications in electronics and automotive lighting.

What materials cannot be CNC machined?

Not all materials are suitable for CNC machining. So, what materials should you avoid when choosing a material for your project?

Brittle materials like glass, certain ceramics, and materials with extremely high melting points like tungsten are generally not suitable for CNC machining.

Glass and ceramics are challenging to machine due to their brittleness, which can lead to cracking during the process. Tungsten, due to its high melting point and hardness, is also difficult to machine without special equipment.

Why Glass and Ceramics Aren’t Ideal for CNC

While glass and ceramics have their uses in specific applications, their fragility makes them unsuitable for typical CNC operations. These materials require precise handling and special tools, and their low wear resistance makes them prone to damage during machining. Moreover, their tendency to crack or shatter under stress can lead to high rejection rates and additional costs.

The Problem with Tungsten in CNC

Tungsten’s high melting point requires specialized tools and techniques for CNC machining, which makes it impractical for many standard applications. To machine tungsten, high-powered lasers, EDM (electrical discharge machining), or Waterjet cutting⁷ may be required, which are costly and more time-consuming than traditional CNC methods.

What is the cheapest material to CNC?

Cost is always a consideration when choosing a material for CNC machining. So, which materials are the most cost-effective?

Aluminum is often the cheapest material to CNC, offering a good balance of affordability and performance.

Aluminum, particularly alloys like 6061, is widely used because it is both affordable and highly versatile. It’s a great option when you need high machinability at a lower cost compared to other metals like steel or titanium.

Why Aluminum is Cost-Effective

Aluminum’s light weight, strength, and ease of machining make it one of the most cost-effective materials for CNC operations. It also reduces machining time, further lowering overall production costs. The availability of various aluminum alloys ensures that you can choose the most appropriate one for your application without significantly increasing costs.

Comparing Aluminum to Other Metals

While materials like steel and titanium offer greater strength, their higher cost often makes aluminum the better choice for many CNC machining projects. Steel and titanium alloys, though stronger, typically require more time and precision to machine, leading to higher labor and tool costs.

What is the easiest material to CNC?

Ease of machining is essential when considering the production speed and tool wear. Which materials are the easiest to work with in CNC?

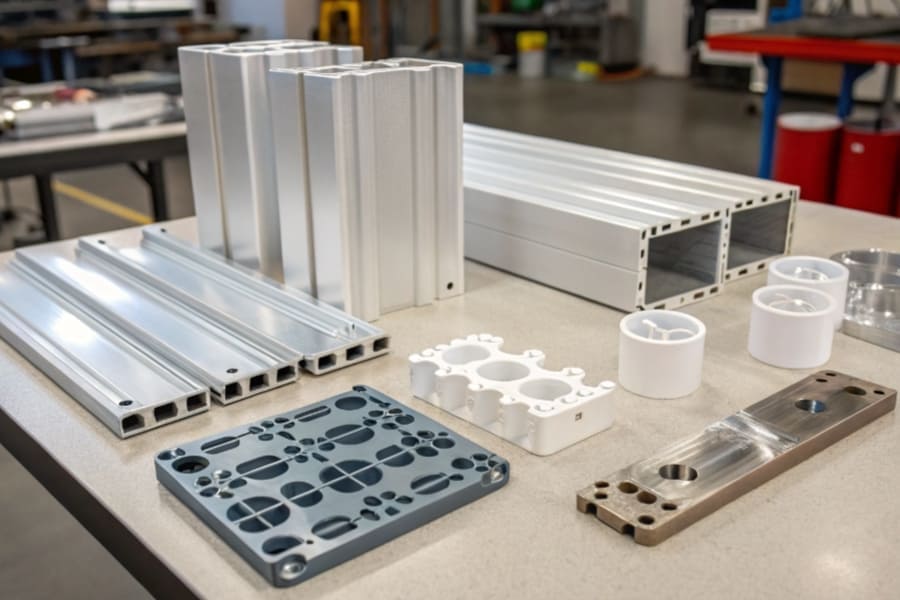

Aluminum and plastics like acrylic and PVC are some of the easiest materials to CNC due to their softness and machinability.

Aluminum is easy to machine, and plastics like acrylic and PVC are also quite simple, making them ideal for fast production runs and parts that need precision without the complexity of harder materials.

Why Aluminum is Easy to Machine

Aluminum’s low density and malleability make it a favorite for CNC operators, as it requires less force to cut and doesn’t produce excessive tool wear. The material’s wear resistance also ensures that tools last longer when machining aluminum parts. Furthermore, aluminum’s ability to dissipate heat during machining helps prevent overheating, making it easier to handle in high-speed operations.

The Role of Plastics in CNC

Plastics like PVC and acrylic are softer and easier to cut, which allows for faster production times and lower tool costs. Their flexibility also makes them ideal for intricate designs or small production runs where high precision is required without the need for expensive tooling.

How thick of material can a CNC machine cut?

The thickness of the material that can be cut depends on the CNC machine’s capabilities. So, what’s the maximum thickness a CNC machine can handle?

CNC machines can typically cut materials from 1mm to 150mm thick, depending on the material and the type of CNC machine used.

Larger machines can handle thicker materials, but cutting thicker materials requires more power and slower Feed rate⁸. The material’s hardness and density also impact the maximum thickness that can be cut. Harder materials may require slower speeds to reduce tool wear and prevent material deformation.

Factors Affecting Cutting Thickness

The CNC machine’s power, tool size, and cutting technique all influence how thick a material can be cut. Harder materials often require slower speeds and reduced cutting depths to maintain tool life.

CNC Machines for Large Parts

Specialized CNC machines with greater power can handle thicker parts. However, for very thick or heavy materials, additional processing methods, like waterjet cutting, might be required.

What is the minimum wall thickness for CNC?

When designing parts for CNC machining, the minimum wall thickness is a key consideration. So, what’s the smallest wall thickness that can be machined?

Generally, the minimum wall thickness for CNC parts is around 0.5mm to 1mm, depending on the material and machine.

Materials like aluminum and plastic can handle thinner walls, while harder materials like steel may require thicker walls to maintain strength and stability.

Minimum Wall Thickness for Different Materials

For softer materials like plastics, you can go as low as 0.5mm, but for metals, especially steel and titanium, a minimum thickness of 1mm is recommended to ensure strength and durability.

Design Considerations for Thin Walls

When designing parts with thin walls, it’s crucial to ensure that the part doesn’t become too fragile or difficult to machine. Wall thickness impacts both the material’s strength and its machinability. Thin-walled parts also require precise control of cutting speeds to avoid warping or distortion during machining.

Conclusion

Choosing the right material for CNC machining involves balancing factors like strength, machinability, wear resistance, and cost. Understanding your material options and how they interact with the CNC process can help you make informed decisions for your project.
