As a professional in the world of machining, I’ve had the pleasure and challenge of working with various techniques, one of which is thread machining. This process is fundamental in many manufacturing applications, from automotive to aerospace, and understanding it can make a significant difference in your projects. In this article, I’ll delve into the intricacies of thread machining, explain the different methods, and provide a cutting guide to help you get the best results.
What is Thread Machining?
Thread machining is the process of creating or altering threads on a workpiece, typically a metal or plastic component, to allow for the fitting of screws, bolts, or other threaded fasteners. These threads can either be external (on the outside of a cylinder or cone) or internal (on the inside of a hole). The goal is to produce precise, consistent threads that meet the required specifications and provide a secure, functional fit.
Why is Thread Machining Important?
Thread machining is crucial because it ensures that components can be assembled and disassembled reliably. Properly machined threads reduce wear and tear, prevent leaks, and enhance the overall performance of the machinery. In industries like aerospace and automotive, where precision and reliability are paramount, the quality of threads can mean the difference between a successful project and a costly failure.
Methods of Thread Machining
There are several methods used to machine threads, each with its own advantages and applications. Here are the most common techniques:
1. Tapping
Tapping is a method used to create internal threads. It involves using a tap, a cutting tool with a specific thread profile, to cut threads into a pre-drilled hole. Taps come in various sizes and pitches to match the required thread specifications.
Steps to Tapping:
- Drill the Hole: Use a drill bit to create a hole with a diameter slightly smaller than the desired thread.
- Select the Tap: Choose a tap that matches the size and pitch of the thread you need.
- Apply Cutting Fluid: Use a cutting fluid to lubricate the tap and reduce friction.
- Turn the Tap: Insert the tap into the hole and turn it slowly, applying consistent pressure.
- Reverse and Remove: Periodically reverse the tap to clear out chips and ensure a clean thread.
2. Threading

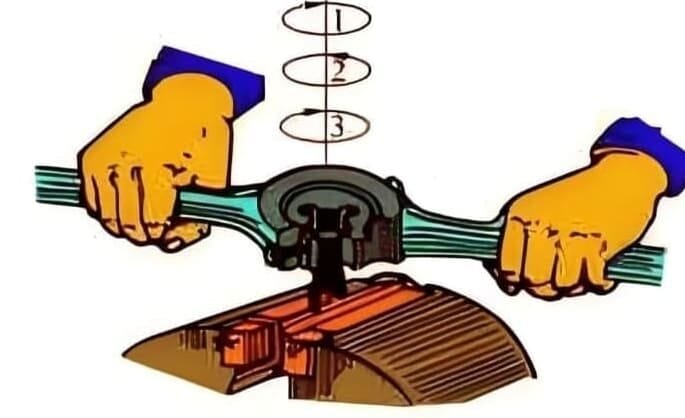

Threading, also known as die threading, is used to create external threads. It involves using a die, a tool with a thread profile on its inner surface, to cut threads onto the outer surface of a workpiece.
Steps to Threading:
- Prepare the Workpiece: Ensure the workpiece is clean and free of burrs.
- Select the Die: Choose a die that matches the desired thread size and pitch.
- Apply Cutting Fluid: Use a cutting fluid to lubricate the die and reduce friction.
- Turn the Die: Place the die over the workpiece and turn it slowly, applying consistent pressure.
- Reverse and Remove: Periodically reverse the die to clear out chips and ensure a clean thread.
3. Milling

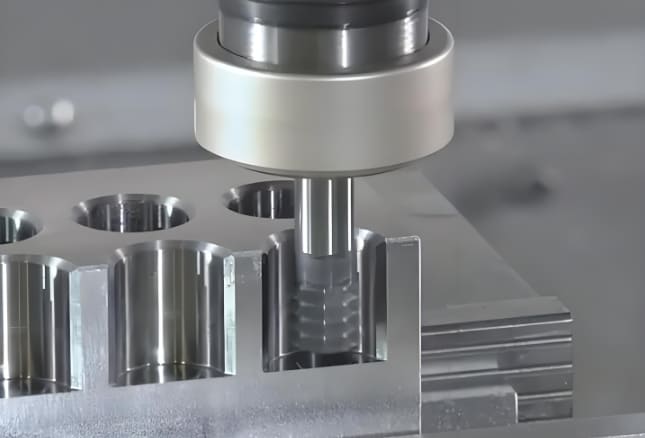

Milling is a versatile method that can be used to create both internal and external threads. It involves using a milling machine with a thread milling cutter to remove material and form the threads.
Steps to Milling:
- Secure the Workpiece: Clamp the workpiece firmly to the milling machine table.
- Select the Milling Cutter: Choose a thread milling cutter that matches the desired thread size and pitch.
- Program the Machine: Set up the milling machine with the correct parameters for the thread.
- Apply Cutting Fluid: Use a cutting fluid to lubricate the cutter and reduce friction.
- Milling Process: Run the milling machine to cut the threads, ensuring the depth and pitch are accurate.
4. Turning

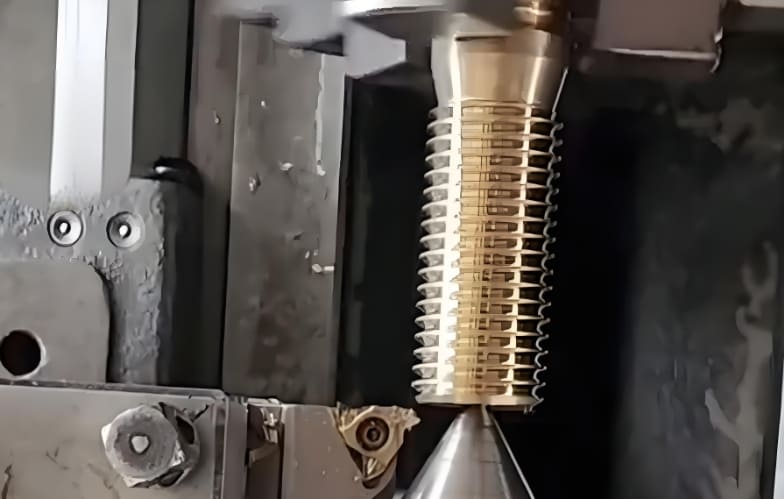

Turning is a method used to create external threads on a lathe. The lathe rotates the workpiece while a cutting tool, typically a single-point tool, moves along the surface to cut the threads.
Steps to Turning:
- Secure the Workpiece: Mount the workpiece on the lathe.
- Select the Tool: Choose a single-point tool with the correct thread profile.
- Program the Lathe: Set up the lathe with the correct parameters for the thread.
- Apply Cutting Fluid: Use a cutting fluid to lubricate the tool and reduce friction.
- Turning Process: Turn the lathe to cut the threads, ensuring the depth and pitch are accurate.
5. CNC Machining
CNC (Computer Numerical Control) machining is a modern, precise method that uses computer-controlled machines to create both internal and external threads. This method is highly accurate and can handle complex thread profiles.
Steps to CNC Machining:
- Design the Thread: Use CAD (Computer-Aided Design) software to create the thread profile.
- Program the CNC Machine: Translate the CAD design into a CNC program.
- Secure the Workpiece: Clamp the workpiece firmly to the CNC machine.
- Select the Tool: Choose the appropriate cutting tool for the thread.
- Apply Cutting Fluid: Use a cutting fluid to lubricate the tool and reduce friction.
- Run the Machine: Start the CNC machine to cut the threads according to the programmed design.
Cutting Guide for Thread Machining
To achieve high-quality threads, it’s essential to select the right cutting parameters and tools. Here’s a cutting guide to help you get started:
Cutting Parameters
- Speed: The speed at which the tool or workpiece moves. Faster speeds can increase efficiency but may reduce tool life.
- Feed Rate: The rate at which the tool advances into the workpiece. A slower feed rate can improve thread quality but may increase machining time.
- Depth of Cut: The amount of material removed in a single pass. Deeper cuts can reduce machining time but may lead to tool breakage.
Tool Selection
- Material: Choose tools made from materials that are compatible with your workpiece. Common choices include high-speed steel (HSS) and carbide.
- Size and Pitch: Ensure the tool matches the required thread size and pitch.
- Coatings: Consider tools with coatings like titanium nitride (TiN) to improve wear resistance and reduce friction.
Cutting Fluids
- Type: Use cutting fluids that are appropriate for your workpiece material. Common choices include mineral oils, synthetic oils, and water-soluble coolants.
- Application: Apply the cutting fluid consistently to reduce heat and improve tool life.
Common Thread Types
Understanding the different types of threads is crucial for selecting the appropriate machining method. Here are some of the most common thread types:
1. Metric Threads
- Profile: ISO metric thread
- Pitch: Measured in millimeters
- Common Sizes: M3, M4, M5, M6, M8, M10, etc.
2. UNC and UNF Threads
- Profile: Unified National Coarse (UNC) and Unified National Fine (UNF)
- Pitch: Measured in threads per inch (TPI)
- Common Sizes: 1/4-20 UNC, 1/4-28 UNF, 5/16-18 UNC, 5/16-24 UNF, etc.
3. Acme Threads
- Profile: Trapezoidal shape with a 29° included angle
- Uses: High-load applications, such as lead screws in machine tools
4. Buttress Threads
- Profile: Asymmetrical shape designed to handle high unidirectional loads
- Uses: Vise screws, clamping mechanisms
Tips for Successful Thread Machining
To ensure your thread machining process goes smoothly, here are some tips:
- Pre-Drill Accurately: Always pre-drill holes to the correct size and depth before tapping.
- Maintain Tools: Keep your tools sharp and well-maintained to prevent chatter and improve thread quality.
- Use the Right Cutting Fluid: Choose a cutting fluid that is compatible with your workpiece material and machinining process.
- Monitor Machine Settings: Regularly check and adjust machine settings to maintain precision.
- Inspect Threads: Use thread gauges to inspect the threads for accuracy and quality.
Conclusion
Thread machining is a critical skill in the world of manufacturing, and mastering it can significantly enhance the quality and functionality of your projects. Whether you’re using traditional methods like tapping and threading or modern techniques like CNC machining, the key is to understand the process, select the right tools, and follow best practices. With the right knowledge and approach, you can produce threads that meet the highest standards of precision and reliability.
I hope this guide has been helpful in your journey to understanding thread machining. If you have any more questions or need further assistance, feel free to reach out. Happy machining!
FAQs
Q1: What is the difference between tapping and threading?
- A1: Tapping is used to create internal threads, while threading is used to create external threads. Both involve the use of cutting tools, but tapping uses a tap, and threading uses a die.
Q2: What is the best method for high-precision threads?
- A2: CNC machining is generally the best method for high-precision threads due to its ability to produce consistent, accurate results.
Q3: How do I choose the right cutting speed and feed rate?
- A3: The right cutting speed and feed rate depend on the material, tool, and thread size. Consult the tool manufacturer’s guidelines or use a machining calculator to find the optimal parameters.
Q4: Can I use the same tap or die for different materials?
- A4: While some taps and dies are designed for multiple materials, it’s generally best to use tools that are specifically made for the material you are working with to ensure optimal performance.
Q5: What are the common issues in thread machining?
- A5: Common issues include broken tools, poor thread quality, and excessive wear. These can often be mitigated by using the right tools, maintaining your equipment, and following proper machining techniques.
