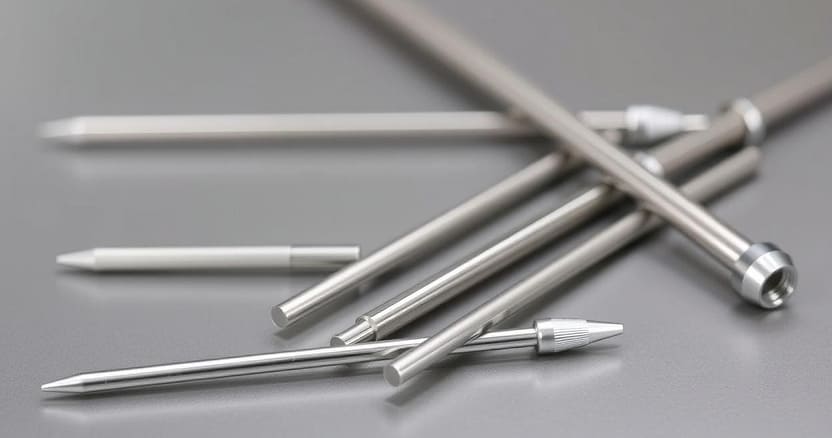

How to Machine a Long, Thin Piece of Metal: A Practical Guide

Machining long, thin metal parts can be a real challenge. If you are a machinist you should know that these parts are notoriously prone to bending, chattering, and deflection during machining, which can lead to inaccuracies and a poor surface finish. But don’t worry! With the right techniques, careful planning, and a bit of patience, you can successfully machine these tricky components. I have personally faced these challenges many times in my career, I’ll share the strategies I’ve found most effective.

Understanding the Challenges

Before diving into the how-to, it’s crucial to understand why machining long, thin metal pieces is so difficult. The primary issues stem from:

• Lack of Rigidity: Thin parts naturally lack stiffness. The cutting forces during machining can easily cause them to flex or vibrate.
• Chatter: This vibration between the cutting tool and the workpiece results in a poor surface finish and can even damage the tool or the part.
• Deflection: The cutting forces can push the material away from the tool, leading to inaccuracies in dimensions.
• Heat Buildup: Thin sections dissipate heat poorly, potentially causing thermal expansion and further dimensional inaccuracies.

Tools and Equipment

To successfully machine a long, thin piece of metal, you’ll need the right tools and equipment. Here’s a list of what you’ll need:

Essential Tools and Equipment

• Lathe: A lathe is the primary tool for machining long, thin pieces. It should have sufficient power and stability to handle the material.
• Steady Rests: These are essential for supporting the workpiece and preventing deflection.
• Live Centers: These help in rotating the workpiece smoothly and maintaining accuracy.
• Cutting Tools: High-quality cutting tools, such as carbide inserts, are crucial for achieving a good finish.
• Coolant System: A reliable coolant system helps in managing heat and extending tool life.
• Measuring Tools: Calipers, micrometers, and dial indicators are necessary for precise measurements.

Planning and Preparation: The Foundation for Success

Proper planning is half the battle. Here’s what I always consider before starting a job involving long, thin metal:

1. Material Selection: If possible, choose a material with higher stiffness and better machinability such as some alloy steels.
2. Part Geometry: Can the design be modified, even slightly, to improve rigidity during machining? Adding temporary tabs or supports that can be machined away later can make a big difference.
3. Machining Strategy: Think carefully about the order of operations. Sometimes, machining features in a specific sequence can minimize stress buildup and distortion.
4. Tooling Selection: Choose the right cutting tools. Sharp tools with the correct geometry minimize cutting forces.
5. Workholding: This is absolutely critical. The way you hold the part will significantly impact the outcome.

Workholding Strategies: Keeping it Stable

Choosing the appropriate workholding method is paramount. Here are some common and effective strategies I’ve used:

• Vises: Standard machine vises can work for some applications, especially if you use soft jaws (made from aluminum or plastic) to distribute the clamping force evenly and prevent deformation.
• Fixtures: Custom fixtures are often the best solution for complex or high-precision parts. A well-designed fixture provides rigid support and accurate positioning.
• Vacuum Chucks: These are excellent for thin, flat parts. The vacuum pressure holds the part securely without introducing excessive clamping forces.
• Double-Sided Tape: For very thin or delicate parts, double-sided tape can be used to adhere the part to a rigid substrate. However, it’s essential to use a high-quality tape that won’t leave residue.
• Low-Melting-Point Alloys: For extremely delicate parts, you can embed the part in a low-melting-point alloy to provide support during machining. The alloy is then melted away after machining.

Machining Techniques: Minimizing Forces and Vibration

Once you have a secure workholding setup, focus on using machining techniques that minimize cutting forces and vibration:

• Light Cuts: Take shallow cuts with a small depth of cut and feed rate. This reduces the force on the part and minimizes deflection.
• Sharp Tools: Use sharp cutting tools with the correct geometry for the material being machined. Dull tools require more force and generate more heat.
• Proper Speeds and Feeds: Consult machining charts and adjust speeds and feeds to optimize cutting performance and minimize vibration.
• Coolant: Use a generous amount of coolant to dissipate heat and lubricate the cutting tool. This helps to prevent thermal distortion and improve surface finish.
• Climb Milling: In many cases, climb milling (where the cutter engages the material at its thickest point) can reduce vibration compared to conventional milling. However, be careful with climb milling, as it can sometimes pull the workpiece out of the workholding device if not properly secured.
• Multiple Passes: Instead of trying to remove all the material in one pass, make several light passes. This reduces the overall cutting force and minimizes distortion.
• Backing Up: Providing physical backing to the part near the cut is essential. This can be done with strategically placed supports in a fixture or even with hand-held pressure (use caution!).

Specific Considerations for Long, Thin Parts

Here’s a table summarizing key considerations and techniques:

Example Process

Let’s say I need to machine a long, thin aluminum part with tight tolerances. Here’s the approach I would take:

1. Design Review: I would first review the part design to see if any modifications could improve rigidity.
2. Fixture Design: I would design a custom fixture with multiple support points along the length of the part.
3. Material Selection: I would use a grade of aluminum known for its machinability and dimensional stability.
4. Tooling: I would select sharp, high-quality end mills with a geometry optimized for aluminum.
5. Machining Parameters: I would start with conservative speeds and feeds and gradually increase them until I found the optimal settings.
6. Coolant: I would use a flood coolant system to keep the part and tool cool.
7. Machining Sequence: I would machine the features in a sequence that minimizes stress buildup.
8. Finishing: As a final step, I would use a deburring tool to carefully remove any sharp edges.

Tips for Success

• Use High-Quality Steady Rests: Invest in high-quality steady rests to ensure they provide the necessary support and stability.
• Regular Maintenance: Keep your lathe and tools well-maintained to ensure they operate at their best.
• Practice Patience: Machining long, thin pieces requires patience and attention to detail. Take your time and make adjustments as needed.

Common Issues and Solutions

1. Deflection

• Solution: Use steady rests to support the workpiece at multiple points. Adjust the position of the steady rests as needed to minimize deflection.

2. Vibration

• Solution: Ensure the lathe and tools are properly balanced. Use a lower feed rate and higher spindle speed to reduce vibration.

3. Heat Distortion

• Solution: Use a coolant system to manage heat. Pre-heat the material to a uniform temperature to reduce thermal shock.

FAQs

1. What is the best material for machining long, thin pieces?

• Answer: Materials like aluminum, brass, and certain grades of steel are generally easier to machine and less prone to deflection and heat distortion.

2. How do I prevent the workpiece from overheating?

• Answer: Use a reliable coolant system and pre-heat the material to a uniform temperature. Adjust the cutting parameters to avoid excessive heat generation.

3. Can I use a milling machine instead of a lathe?

• Answer: While a lathe is the preferred tool for machining long, thin pieces, a milling machine can be used for certain operations. However, it may require additional setup and support to prevent deflection and vibration.

4. How often should I inspect the workpiece during machining?

• Answer: Inspect the workpiece after each significant pass to ensure it is within the desired dimensions and to check for any signs of deflection or vibration.

5. What are some signs that the cutting tool needs to be replaced?

• Answer: Signs that the cutting tool needs to be replaced include poor surface finish, increased cutting forces, and visible wear or chipping on the tool.

Conclusion

Machining long, thin pieces of metal can be a challenging but rewarding task. By understanding the challenges, using the right tools and equipment, and following a systematic approach, you can achieve high-quality results. Remember to be patient, monitor the process closely, and make adjustments as needed. With practice and experience, you’ll become more confident and proficient in machining long, thin pieces of metal.

I hope this guide helps you in your machining endeavors. If you have any questions or need further assistance, feel free to reach out. Happy machining!
