How to Choose CNC Lathe Tools: Types, Functions, and Setup Process

What is CNC tools?

CNC tools might seem like simple mechanical components, but they play a crucial role in precision manufacturing. Without the right CNC tools, our products may not achieve the necessary accuracy and quality. So, how do you choose the right tool? What tools can ensure your CNC machine operates efficiently and precisely?

CNC tools are specialized cutting tools used in Computer Numerical Control (CNC) machines to ensure precision in part manufacturing.

You may feel overwhelmed by the variety of CNC tools available. Don’t worry, once you understand the functions and applications of each tool, selecting the right one will be much easier. Let’s dive into the most common tools used in CNC machines.

What are the tools used in a CNC machine?

In CNC machining, the choice of tools directly impacts the quality of the finish and production efficiency. Different operations require different tools, and selecting the wrong tool could lead to significant production delays or losses. Do you know which tools are considered “essential” for CNC machines?

The tools used in CNC machines include drills, end mills, taps, reamers, and inserts. Each tool serves a unique function and is designed for specific tasks in the machining process.

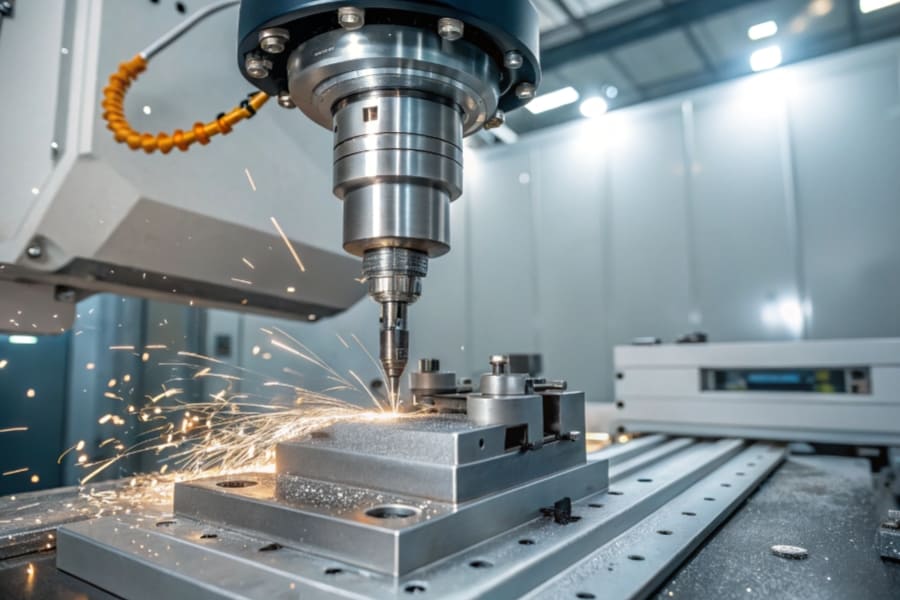

CNC machines, whether milling or turning, use specialized tools to execute different operations. A drill, for example, is used for creating holes, while an end mill is more versatile and can cut both horizontally and vertically. Taps are used for threading, and reamers are used for smoothing and enlarging holes.

What functions do CNC tools perform?

CNC tools can serve several functions in a machine, from simple drilling to complex shaping. Below is a quick breakdown of some essential tools and their functions:

Drills in CNC machining

Drills are commonly used to create round holes in parts. In CNC machines, drills can be equipped with different tip designs to create different hole shapes. For instance, twist drills are often used for drilling smaller holes, while spade drills are used for larger hole diameters.

The most common drill material is High-speed steel (HSS)¹, but carbide-tipped drills are also widely used for harder materials due to their superior wear resistance. When choosing drills, you must consider the material being drilled, the required hole size, and the depth of the hole.

End Mills and their versatility

End mills are one of the most versatile cutting tools in CNC machining. Unlike drills, which only move vertically, end mills can cut in multiple directions, both horizontally and vertically. They are commonly used for milling, slotting, and contouring operations.

End mills come in different shapes, such as square, ball nose, and corner radius. The material of the end mill, such as carbide or cobalt, plays a crucial role in determining its durability and cutting ability.

What are CNC tools made of?

CNC tools are typically made from high-strength materials to ensure durability, precision, and resistance to wear during machining processes.

The most common materials used for CNC tools include High-Speed Steel (HSS), Carbide (Tungsten Carbide), Ceramics, Cobalt Alloys, Polycrystalline Diamond (PCD), Diamond-Coated Tools.

1. High-Speed Steel (HSS)

• Hardness:
  High-speed steel typically has a hardness of around 60-65 HRC (Rockwell Hardness). While its hardness is lower compared to carbide, it offers good toughness.
• Machinable Materials:
  HSS tools are commonly used for machining soft to medium-hard materials like steels, aluminum, copper, plastics, and other non-ferrous metals. It’s suitable for lower to moderate cutting speeds and is often used in general-purpose applications.

2. Carbide (Tungsten Carbide)

• Hardness:
  Carbide tools have a hardness of approximately 90-94 HRA (Rockwell Hardness). They are among the hardest tool materials and can retain sharpness for longer durations.
• Machinable Materials:
  Carbide tools are used for high-speed machining of harder materials such as steel, stainless steel, cast iron, and titanium alloys. They are suitable for tough applications and high-speed cutting operations.

3. Ceramics

• Hardness:
  Ceramic tools are extremely hard, typically exceeding 90 HRA, and can withstand very high temperatures.
• Machinable Materials:
  Ceramics are often used to machine hard metals such as cast iron, high-temperature alloys, and hardened steels. However, they are more brittle and less suited for machining ductile materials.

4. Cobalt Alloys

• Hardness:
  Cobalt alloys have a hardness around 70-80 HRC, providing good heat resistance and toughness.
• Machinable Materials:
  Cobalt alloy tools are well-suited for machining high-strength materials, including steel and superalloys. They are also effective in high-stress environments like aerospace and automotive applications.

5. Polycrystalline Diamond (PCD)

• Hardness:
  PCD tools are extremely hard, typically above 90 HRA, and can retain sharpness for an extended period, making them ideal for abrasive cutting tasks.
• Machinable Materials:
  PCD tools are commonly used for machining non-ferrous metals like aluminum, copper, and brass, as well as composites, plastics, and even abrasive materials like graphite and carbon fiber.

6. Diamond-Coated Tools

• Hardness:
  Diamond-coated tools feature a synthetic diamond coating that has hardness exceeding 100 HRA, the hardest known material used in machining.
• Machinable Materials:
  These tools are used for machining extremely hard and abrasive materials, such as ceramics, glass, composites, and some metals like hardened steel.

The choice of material depends on the application, required cutting performance, and the material being machined.

How many types of CNC tools are there?

With the wide variety of operations that CNC machines can perform, it’s no surprise that there are many different tools available. Understanding the types is key to ensuring that your machine runs efficiently and accurately.

There are several types of CNC tools, including cutting tools, measuring tools, and finishing tools. They can be further divided into categories based on the material they are used for or their specific functions.

CNC tools can be categorized into cutting tools like drills, end mills, and lathes; measuring tools such as calipers and micrometers; and finishing tools for surface refinement. These tools help achieve precision in machining and shape complex parts with minimal human intervention.

Types of CNC cutting tools

There are various types of CNC cutting tools, each designed for specific machining tasks. Here are a few:

• Drills: Used for creating round holes
• End Mills: Ideal for producing flat surfaces, slots, and contours
• Taps: For creating internal threads
• Reamers: Used for fine-tuning hole sizes

Measuring Tools for CNC Machines

Measuring tools, such as calipers, micrometers, and dial indicators, are critical for ensuring the accuracy of the machining process. These tools are used to measure the dimensions of parts and verify that they meet specifications. A proper measurement ensures that the right cutting tools are selected and that tolerances are maintained.

For example, micrometers are often used for measuring the thickness or diameter of a part, while calipers are used for measuring both internal and external dimensions.

Finishing Tools

Finishing tools, including polishing tools and abrasive wheels, are used to refine the surface finish of a part. These tools are designed to smooth out imperfections and ensure that the final product meets the desired quality standards. For example, a surface grinder or a belt sander may be used to remove small amounts of material and create a smooth surface.

How to choose the proper cutting tool for CNC lathes?

Choosing the right cutting tool for CNC lathes is crucial for achieving the desired cut and ensuring that the machine operates efficiently. With numerous options available, making an informed decision can seem tricky.

To choose the proper cutting tool for CNC lathes, consider factors like the material being cut, the operation required, and the cutting tool’s material properties. Tools should be selected based on their ability to perform specific tasks effectively.

CNC lathes are used for turning operations where cylindrical parts are created. Depending on the material and required cut, you might choose from carbide inserts, high-speed steel tools, or ceramic tools. Carbide tools, for instance, are great for hard materials, while high-speed steel tools are more suited for softer materials.

Key considerations for selecting CNC lathe tools

When selecting a cutting tool for CNC lathes, here are a few factors to keep in mind:

• Material of the part: Harder materials require tougher tools.
• Cutting speed: Faster speeds might need more heat-resistant tools.
• Tool life: Choose tools that provide longevity and reduce downtime.

The cutting speed and Feed rate² are critical parameters that should be optimized according to the material and the specific cutting tool. For instance, carbide tools perform well under higher speeds but may require a different feed rate compared to high-speed steel tools.

What kind of cutting tool is necessary for lathing?

Lathing, or turning, involves rotating a part while a tool is applied to it. Choosing the right cutting tool is essential for smooth and accurate results.

For lathing operations, cutting tools such as carbide inserts, high-speed steel (HSS) tools, or ceramic tools are commonly used. These tools must be designed to handle the high-speed and forceful conditions of lathe operations.

Lathing requires tools with strong cutting edges that can handle material removal efficiently. Carbide inserts are often favored due to their hardness and resistance to wear, making them ideal for tougher metals.

Cutting tool shapes for lathing

When it comes to lathing, the shape and geometry of the tool are crucial for performance. Some common shapes include:

• Straight tools: Used for basic turning operations
• Radius tools: Help in creating curves or radii
• Grooving tools: Designed for cutting grooves into the workpiece

Choosing the right tool shape is essential for the specific part geometry being machined. For example, a radius tool is ideal for creating curved surfaces, while a grooving tool is used to cut deep grooves into the material.

Which type of cutting tools have wide application on CNC lathes?

Some cutting tools are so versatile that they are used in various industries for different applications. Understanding which tools are widely used can help you streamline your workflow.

The most widely used cutting tools on CNC lathes include carbide inserts, high-speed steel (HSS) tools, and ceramic tools. Each has its advantages, depending on the material and precision required.

Carbide inserts, in particular, are known for their versatility, durability, and ability to handle a wide range of materials. High-speed steel tools are also popular for softer materials, while ceramic tools are suitable for very hard materials or high-speed operations.

Benefits of carbide inserts in CNC lathes

Carbide inserts offer several advantages, including:

• Longer tool life: They withstand wear longer than other tools.
• Better heat resistance: They perform well under high temperatures.
• High precision: Carbide inserts provide clean, accurate cuts.

Carbide inserts are often preferred for heavy-duty cutting tasks, as they can handle higher cutting speeds and provide superior finish quality.

How to set up a lathe cutting tool in turning operation?

Setting up a lathe cutting tool correctly is crucial for achieving the desired results. Improper setup can lead to inefficient machining, poor surface finish, or even tool damage.

To set up a lathe cutting tool in a turning operation, first ensure the tool is securely mounted in the tool holder. Adjust the tool’s position to the correct cutting angle and ensure the workpiece is centered properly.

The setup process for a lathe cutting tool involves aligning the tool to the correct position, adjusting the cutting angle, and securing the workpiece properly. Using a dial indicator and micrometer can help ensure that everything is aligned precisely.

Steps for setting up lathe tools

Here are the steps for setting up a lathe cutting tool:

1. Mount the tool: Secure it tightly in the tool holder.
2. Adjust the position: Ensure the tool is aligned with the workpiece.
3. Check the angle: Verify the cutting angle for optimal performance.
4. Align the workpiece: Ensure the workpiece is centered and properly secured.

What angle should a cutting tool be on a lathe?

The cutting tool angle on a lathe directly influences the quality of the cut and the life of the tool. Choosing the right angle is crucial to achieving optimal results.

The angle of a cutting tool on a lathe should typically be between 5° and 15° for most operations. However, this can vary depending on the material being machined and the specific type of cutting tool used.

Choosing the right cutting angle helps reduce wear on the tool and minimizes the force applied to the material. For general turning, an angle between 5° and 15° is commonly recommended.

Factors influencing cutting tool angle

Several factors influence the ideal angle of a lathe cutting tool:

• Material hardness: Harder materials may require steeper angles.
• Cutting speed: Higher speeds may demand flatter angles.
• Tool material: Carbide tools often work better at lower angles.

What is the difference between right-hand and left-hand lathe tools?

Right-hand and left-hand tools have different applications in lathe operations. Understanding when and where to use them can improve machining efficiency and precision.

Right-hand lathe tools are used for cutting when the tool moves in a clockwise direction, while left-hand tools are used for cutting in a counterclockwise direction. The choice depends on the machine’s rotation and the workpiece.

Right-hand tools are typically used for most standard lathe operations. Left-hand tools are needed when the cutting direction needs to be reversed, or when cutting on the opposite side of a part.

Choosing between right-hand and left-hand tools

When deciding between right-hand and left-hand lathe tools, consider:

• Direction of rotation: Select based on whether the tool needs to cut clockwise or counterclockwise.
• Tool reach: Right-hand tools generally provide better reach for typical operations.

Which cutting tools have the strongest strength?

Strength is a critical factor in cutting tools, especially when working with tough materials. Choosing tools with the right strength can significantly impact the longevity and efficiency of your CNC machine.

Carbide cutting tools are considered some of the strongest tools available, offering excellent resistance to wear, heat, and pressure. Ceramic and cermet tools also provide high strength and are used for extreme machining conditions.

Carbide tools are widely used because they can handle high cutting speeds and extreme heat. Ceramic tools, while less common, offer even greater heat resistance and are often used for very hard materials.

Strength comparison of CNC cutting tools

Here’s a quick comparison of cutting tools based on strength:

Conclusion

CNC tools are essential for precise and efficient machining. By understanding the various types of tools, their applications, and how to choose the right ones, you can improve the quality and speed of your CNC operations.
