What is CNC turning?

CNC turning is a computer-controlled process uses a rotating workpiece and a cutting tool to create precise cylindrical parts

Have you ever wondered how complex cylindrical parts are made with such precision? CNC turning is the answer. In industries like aerospace, automotive, and electronics, parts need to be made with extreme accuracy—this is where CNC turning excels. But what exactly is CNC turning, and why is it so critical in modern manufacturing? Let’s explore how this process works and why it matters.

CNC turning is a computer-controlled process that uses a rotating workpiece and a cutting tool to create precise cylindrical parts. It’s essential in industries where accuracy and consistency are key.

CNC turning combines automation with advanced technology, allowing manufacturers to create intricate components in high volumes. But how does it work? What tools are needed? And why should you care about it? Let’s take a closer look at CNC turning and its importance in manufacturing.

How does CNC turning work?

Have you ever tried to cut something perfectly round, only to find that the edges were uneven? Imagine doing this on a larger scale with complex designs. CNC turning eliminates those problems by automating the process with precise control over every movement. But how exactly does it work?

CNC turning works by rotating a workpiece while a cutting tool shapes it according to a digital design. The tool moves along multiple axes to ensure the part meets exact specifications.

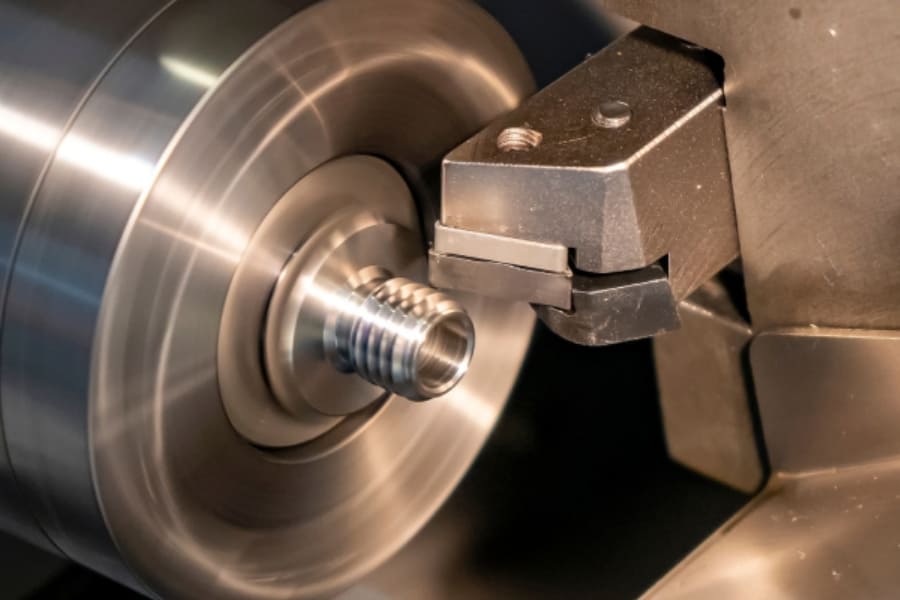

CNC turning works by rotating a workpiece while a cutting tool shapes it according to a digital design.

In CNC turning, the workpiece is secured on a rotating spindle, and the cutting tool is controlled by a CNC machine to remove material and form the desired shape. The machine follows detailed programming, ensuring each part is produced with high precision. This system allows for the creation of parts that are both accurate and efficient, perfect for industries where tolerances matter.

Key components in CNC turning

Component Description
Lathe machine The central equipment in CNC turning, rotating the workpiece.
Cutting tools Used to remove material and shape the workpiece.
CNC controller The brain of the system, directing all movements.
Workpiece The raw material that will be shaped into a final product.

Each component plays a crucial role in the machining process. The lathe machine's precision in rotation and positioning, along with the cutting tools' ability to withstand forces, enables the creation of intricate parts with incredibly tight tolerances. Moreover, the CNC controller interprets the programmed instructions, ensuring a seamless interaction between the machine and the operator’s design.

What is turning operation in CNC?

Turning is a fundamental operation in CNC machining, but what does it really involve? At first glance, it may seem like just a spinning tool, but the turning operation is crucial for creating parts with smooth cylindrical features. Let’s take a deeper look into the process.

Turning operation in CNC involves rotating a workpiece while a cutting tool removes material to shape the part. It’s essential for manufacturing components like shafts and bushings.

Turning operations in CNC are carefully programmed to create precise cuts that result in round shapes, ideal for parts such as spindles, wheels, and other Rotationally symmetric components. With CNC, the precision of this operation can be fine-tuned to meet exact specifications.

Types of turning operations

Type of Turning Description
Straight Turning Removing material along the length of the workpiece to reduce its diameter.
Taper Turning Producing a conical shape by gradually changing the diameter of the workpiece.
Facing Creating a flat surface on the end of a workpiece.
Thread Cutting Cutting threads on the surface of a cylindrical part.

Each type of turning operation can be customized based on the product’s design requirements. While straight turning is the most common, tapered, faced, and threaded parts are also critical for various applications, especially in mechanical assemblies.

What is the difference between CNC and turning?

You might be asking, what’s the difference between CNC and turning? Are they the same thing, or are they two separate processes? While CNC (Computer Numerical Control) refers to any machine that is automated by computer control, turning is specifically a type of operation used in CNC machining.

CNC is a broad term for computer-controlled machines, while turning is a specific operation used in CNC machining to create cylindrical shapes. CNC turning is just one part of CNC machining.

CNC milling machining process service

The distinction is important because CNC encompasses various operations, including milling, drilling, and grinding, whereas turning specifically deals with rotating workpieces to achieve precise cylindrical forms. Both are essential, but turning is particularly focused on creating round, rotationally symmetric parts.

CNC turning versus other CNC operations

Operation Type Description
CNC Milling Involves rotating the cutting tool instead of the workpiece. Suitable for irregular shapes.
CNC Drilling Focuses on creating holes or cavities in a workpiece.
CNC Grinding Uses an abrasive wheel to remove material and achieve high surface finish.

While CNC turning is focused on cylindrical parts, other CNC operations allow for greater versatility in shaping and finishing a wide range of components. The choice of operation often depends on the shape, material, and desired outcome of the part.

Which tool is used for turning on CNC?

You may be curious about the tools used in CNC turning. After all, it’s the tool that shapes the workpiece into the desired form. So, what tools do CNC machines use for turning?

In CNC turning, the primary tool used is a cutting tool, typically made from materials like carbide or high-speed steel. These tools are designed to withstand high forces and temperatures while cutting through tough materials.

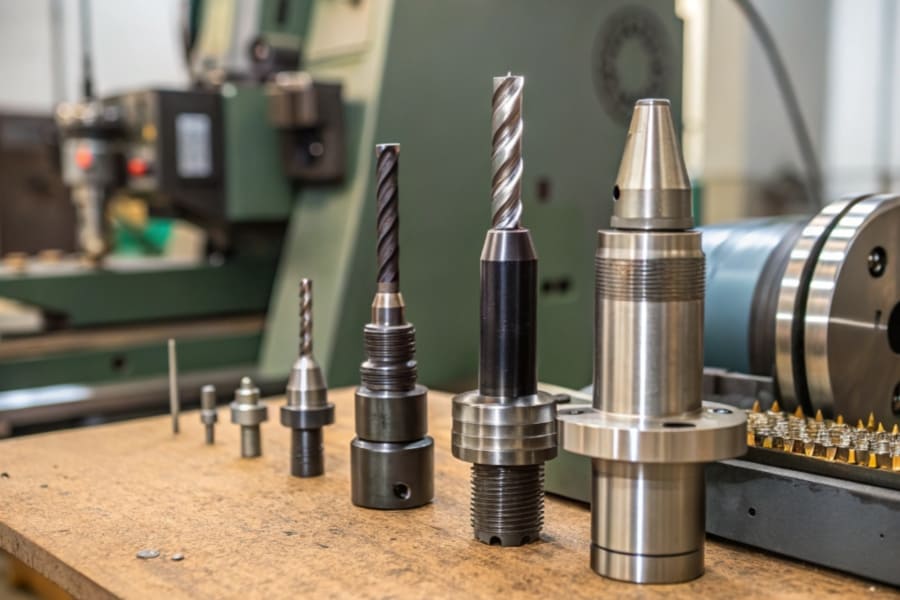

n CNC turning, the primary tool used is a cutting tool, typically made from materials like carbide or high-speed steel

CNC turning tools come in many different shapes and sizes, depending on the type of cut needed. From roughing tools that remove large amounts of material to finishing tools that smooth out the final surface, each tool has a specific purpose in the machining process.

Types of cutting tools used in CNC turning

Type of Tool Description
Roughing tools Used for quickly removing large portions of material.
Finishing tools Used for fine cuts and achieving a smooth surface finish.
Parting tools Used to separate parts from the workpiece.

The choice of tool depends on the operation being performed. Roughing tools remove large volumes of material in a short time, while finishing tools ensure the final product has the necessary surface quality. Parting tools are used to separate completed components from the raw stock, an essential step in multi-part production runs.

How accurate is a CNC turning machine?

Accuracy is a critical factor in CNC turning. How accurate can these machines really get? When it comes to precision manufacturing, CNC turning machines are highly reliable, offering tolerances that meet the most demanding industry standards.

CNC turning machines are incredibly accurate, capable of achieving tolerances within microns, making them suitable for industries like aerospace, automotive, and medical device manufacturing.

The accuracy of a CNC turning machine depends on several factors, such as the machine’s design, the material being cut, and the operator’s expertise. However, even basic CNC machines can achieve remarkable precision compared to traditional manual turning methods.

Factors influencing CNC turning accuracy

Factor Description
Machine rigidity A stable machine frame minimizes deflection during cutting.
Tool wear Regular tool maintenance and adjustments ensure the quality of cuts remains consistent.
Program optimization Proper programming ensures that the toolpath minimizes errors and maximizes precision.

With high-end CNC turning machines, it's possible to achieve tolerances as tight as ±0.001 mm, which is necessary for industries that require near-perfect components, such as medical implants or aerospace parts.

How do you calculate feed for CNC turning?

Feed rate is another crucial aspect of CNC turning. If you’re not familiar with it, how do you calculate the correct feed for a CNC turning operation? The right feed rate ensures that the cutting tool moves at an optimal speed, balancing efficiency and quality.

To calculate the feed in CNC turning, multiply the spindle speed (RPM) by the feed per revolution and the number of cutting edges on the tool. This determines how fast the tool moves along the surface.

CNC turning Feed rate

Correctly setting the feed rate ensures that you achieve the desired cut quality while maintaining efficiency. The feed rate is an essential factor in achieving the right surface finish and preventing excessive wear on both the tool and workpiece.

Feed rate formula

Formula Description
Feed rate = N x cpt x RPM This formula helps determine the feed rate for the CNC turning operation.

N - number of cutting edges (flutes)
cpt - chip load (chip load per tooth) is the amount of material, which should be removed by each tooth of the cutter as it rotates and advances into the work. (mm per tooth)
RPM - the speed at which the cutter revolves in the spindle. (Revolutions per minute)

By optimizing the feed rate, manufacturers can enhance both productivity and surface quality. Too high a feed rate might lead to rough surfaces, while too low a feed rate could result in slower machining times.

What is the cycle time formula for CNC turning?

Cycle time is a critical factor when it comes to optimizing production. But how do you calculate the cycle time for CNC turning? It’s not just about how long the machine runs—it also includes factors like the number of operations performed on the part.

Cycle time is calculated by adding up the time spent on each operation in the machining process, including roughing, finishing, and parting off.

Cycle time directly affects productivity and efficiency, making it an important parameter to track in high-volume production runs. The quicker the cycle time, the faster you can produce parts, but it’s essential to strike a balance with quality.

Cycle time calculation

Formula Description
Cycle time = Time for roughing + Time for finishing + Time for parting off This formula calculates the total time needed for all operations on the part.

Manufacturers often seek to minimize cycle time while maintaining product quality. This can involve optimizing tool paths, feed rates, and machine settings to reduce unnecessary time spent on each operation.

How do you reduce cycle time in CNC turning?

Who wouldn’t want to speed up production while maintaining quality? Reducing cycle time is key to improving productivity and lowering manufacturing costs. So, how can you make your CNC turning process more efficient?

Cycle time can be reduced by optimizing tool paths, increasing feed rates, and minimizing tool change times. Automated systems also help streamline operations.

cnc turning machining process machine

Reducing cycle time doesn’t just mean making the machine run faster—it’s about optimizing every aspect of the process. By using advanced programming, more efficient tooling, and automation, you can reduce the overall cycle time without sacrificing part quality.

Strategies for reducing cycle time

Strategy Description
Increase cutting speeds Faster speeds reduce the overall time per part.
Optimize tool paths Reduce unnecessary travel time.
Use multi-tool setups Minimize tool change time.

These strategies help ensure that the machine operates at maximum efficiency, producing more parts in less time while maintaining consistent quality.

How do you calculate RPM in CNC turning?

The spindle speed (RPM) plays a vital role in CNC turning. But how do you calculate the correct RPM to ensure efficient cutting? Getting the right RPM helps achieve a good balance between cutting efficiency and tool life.

RPM is calculated by dividing the cutting speed (SFM) by the diameter of the workpiece and multiplying by a constant, calculate formula RPM = (Cutting Speed × 12) / (π × Diameter). This determines the optimal spindle speed for the operation.

cnc machining turning parts

The right RPM ensures that the tool cuts effectively without overloading the machine or compromising the quality of the part. Too high an RPM can lead to poor finishes, while too low can result in slow production.

RPM formula

Formula Description
RPM = (Cutting Speed × 12) / (π × Diameter) This formula helps calculate the ideal RPM for a CNC turning operation.

Where:
• Cutting Speed: This is the speed at which the tool moves along the workpiece and is measured in surface feet per minute (SFM). It is an essential parameter that depends on the material being machined, machining process, and the tool’s properties. Cutting speed is calculated using the formula:

Cutting Speed (SFM) = (4 x Cutting Tool Diameter x Spindle Speed)

• Diameter: This refers to the diameter of the stock material and can be determined using calipers or a micrometer.

• π (Pi): This is a constant value used in mathematics and is approximately equal to 3.14159.

This formula helps machinists adjust the spindle speed to the ideal cutting conditions, ensuring the best possible tool life and surface finish.

What is offset in CNC turning?

Offset in CNC turning involves adjusting the tool’s position to compensate for wear and ensure the part is cut accurately. It’s essential for maintaining precision throughout production.

In CNC turning, an offset refers to adjustments made to the tool’s position to account for wear or inaccuracies in the tool. These offsets ensure that the part is machined to the correct specifications, even after repeated use of the tool.

Offsets are particularly useful during long production runs, where tool wear may cause small inaccuracies. By adjusting the offsets, the CNC machine can continue producing parts within the required tolerance.

Conclusion

CNC turning is an essential process in modern manufacturing, offering high precision, efficiency, and flexibility. By understanding its workings, tools, and operations, you can better appreciate its role in creating intricate, high-quality parts used across various industries.
