In my years of experience in the machining industry, one of the most common questions I get from clients is whether to choose CNC Machining or manual machining for their projects. Both have their unique benefits, and the key to success lies in understanding which method aligns best with your specific needs. So, which is the right choice for your business? Is it the precision and speed of CNC machining, or the flexibility and cost-effectiveness of manual machining?
CNC machining offers unmatched speed and precision, while manual machining provides higher flexibility and is more cost-effective for low-volume or customized production.
Let’s dive into the details of both processes and explore when one might be the better fit for your operation.

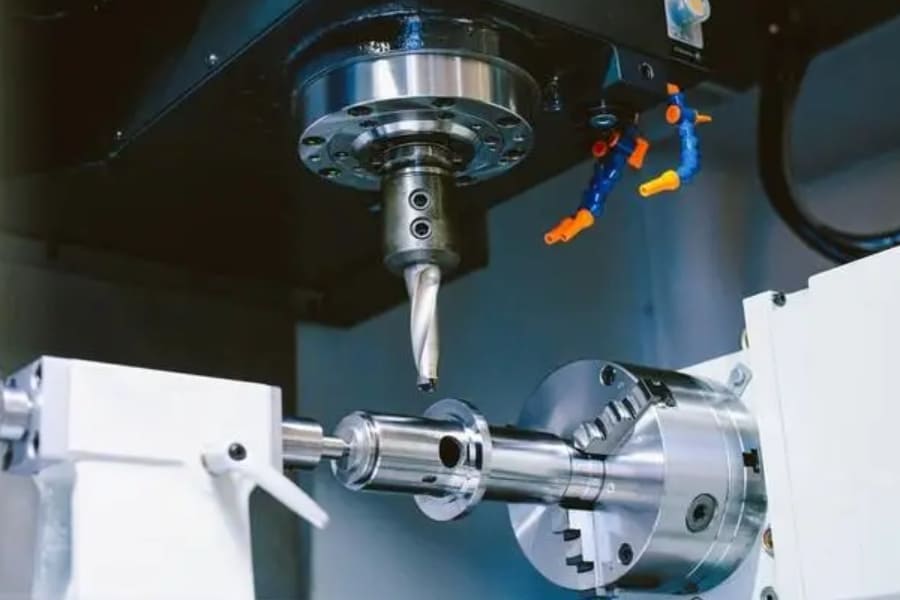

What is CNC machining?
When I first encountered CNC machining, I was truly amazed by its ability to produce incredibly accurate parts with minimal human involvement. Imagine a machine that can cut, drill, and shape materials based on a pre-programmed design. It’s almost like having a robot do all the hard work for you. But how exactly does it work, and why has it become so crucial in modern manufacturing?
CNC machining is an automated process that uses computer programs to control machines and perform precise cutting, shaping, and milling tasks. It’s all about high speed and high precision, with minimal human error.
In CNC machining, a 3D model or CAD1 design is uploaded to a computer, which then directs the machine to perform the operations required. The process is highly automated, allowing for faster production with consistent results. This makes it ideal for high-volume, complex parts where precision is key.
How CNC Machines Work
CNC machines work through a series of steps that include design, programming, machining, and finishing. The process begins with a detailed 3D design or CAD (Computer-Aided Design) model, which is translated into a set of machine instructions through CAM2 (Computer-Aided Manufacturing) software. The CNC machine then follows these instructions with great precision to produce the final part. Depending on the complexity, a machine can perform multiple operations without needing manual intervention.
| Step | Description |
|---|---|
| Design | A 3D model or CAD design is created to visualize the part. |
| Programming | The CAD model is converted into machine instructions via CAM software. |
| Machining | The CNC machine executes the programmed instructions, performing operations like cutting, drilling, or milling. |
| Finishing | The final part is checked for quality and any additional finishing processes (e.g., polishing) are performed. |
Industries and Applications
CNC machining is widely used in industries that require precision, such as aerospace, automotive, electronics, and medical device manufacturing. Components such as turbine blades, precision gears, and custom medical implants are all ideal candidates for CNC machining, where accuracy and consistency are critical.

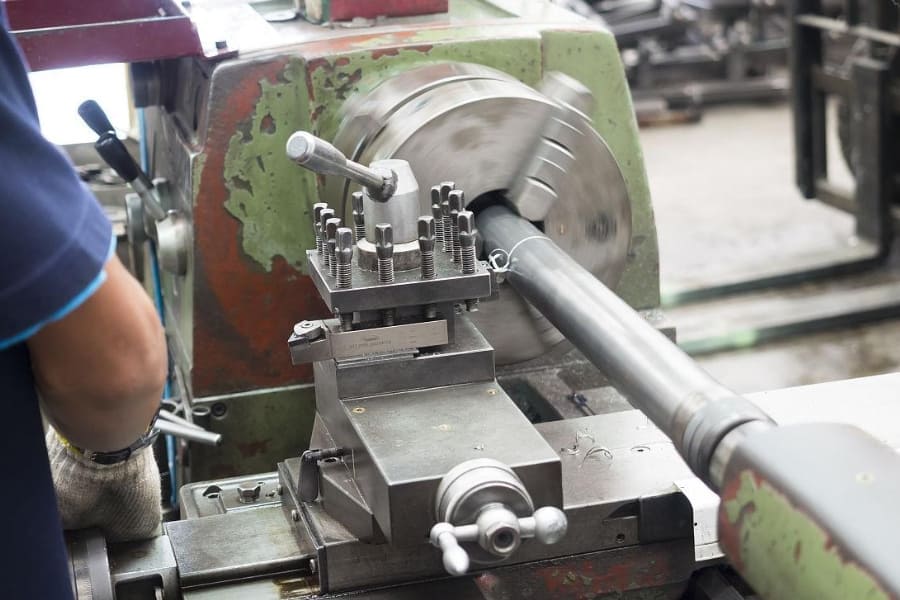

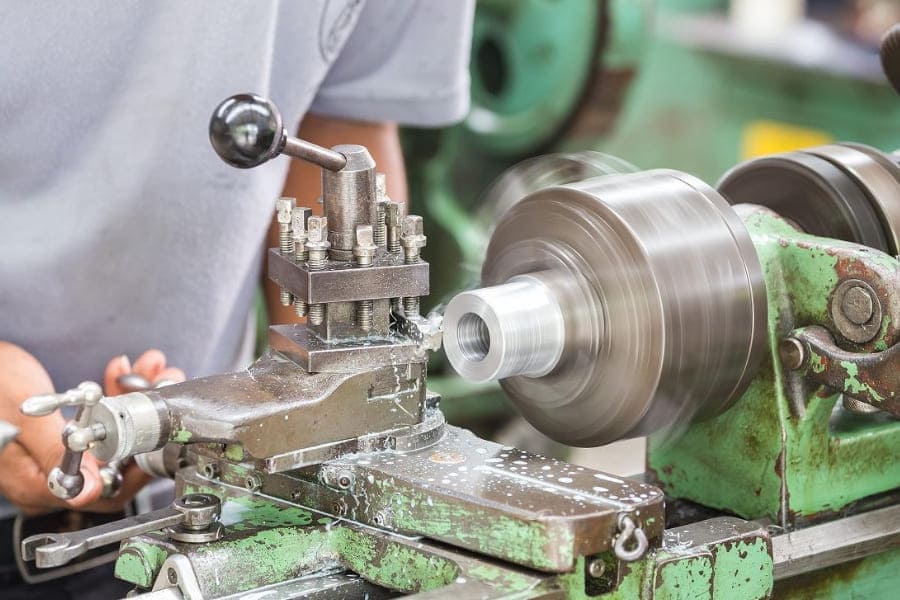

What is Manual Machining?
While CNC machining is all the rage, manual machining still holds a special place in many industries. But why would anyone choose manual over CNC in today’s automated world? Well, it turns out, manual machines offer some unique advantages that CNC can’t always match.
Manual machining involves human operators who directly control the machine, often through cranks, levers, or dials. It’s more hands-on, offering flexibility and customization for small runs or one-off projects.
Manual machines, like lathes and mills, rely on the skill of the operator. The operator must manually adjust the settings and guide the machine to make precise cuts. This can be a slower process, but for custom work or when high flexibility is needed, manual machining still shines.
The Role of Skilled Operators
Manual machining requires highly skilled technicians who possess the knowledge and experience to make quick adjustments, troubleshoot issues, and control the machinery. Their ability to quickly respond to changes, solve unexpected problems, and perform complex, custom operations is a major advantage over CNC machines when dealing with specialized or non-standard tasks.
Use Cases for Manual Machining
Manual machining is often the preferred choice for smaller shops, prototyping, or when dealing with intricate custom work that doesn’t justify the cost or setup time of CNC machinery. Industries like jewelry making, artistic sculpture, and bespoke manufacturing often rely on manual processes for their flexibility and creative freedom.
What are the Advantages of CNC Machining?
If speed and accuracy are what you need, CNC machining is often the go-to choice. But what makes CNC so special, and why has it become the backbone of modern manufacturing?
CNC machining allows for faster production, greater precision, and the ability to operate continuously without human intervention. It’s perfect for mass production, especially when parts need to be identical every time.
Once programmed, CNC machines can work around the clock with minimal supervision. This level of automation means that not only do you get parts faster, but the quality remains consistently high with very little human error.
Speed and Efficiency
CNC machines can complete a task much faster than manual machines. Once the program is set, the machine can keep running without needing breaks or adjustments, making it ideal for large production runs.
Precision and Consistency
One of the biggest advantages of CNC machining is its ability to replicate the same part thousands of times with extremely high precision. There’s no variation between parts unless the program is changed, which is perfect for high-volume manufacturing.
24/7 Production
CNC machines can operate around the clock with minimal human oversight. Once set up and programmed, they can run continuously, reducing downtime and increasing overall productivity. This makes them ideal for industries that require high-volume, non-stop production.
What are the Disadvantages of CNC Machining?
While CNC machines are a powerhouse in terms of efficiency and precision, they’re not without their downsides. So, what are the trade-offs when opting for CNC technology?
CNC machining comes with a higher initial investment, complex setup, and the need for skilled operators to program and maintain the machines.
Although CNC machines offer many benefits, the upfront cost can be prohibitive for small businesses. Additionally, the programming process can be time-consuming, especially for unique or custom parts.
High Initial Cost
The machines themselves, along with the software and training required to operate them, can be expensive. This makes CNC less accessible for small or new businesses with limited budgets.
Maintenance and Setup
Once you have the machine, it still requires regular maintenance and recalibration. Moreover, setting up a CNC machine for a new job can take time and require specialized knowledge.
Complex Setup for Custom Parts
While CNC machines are incredibly efficient for standard production runs, custom or one-off parts often require a significant amount of programming time. This can be inefficient and costly, especially if the parts are small or low in quantity.
What are the Advantages of Manual Machining?
Despite the rise of automation, manual machining continues to serve a purpose in many industries. But what advantages does it offer in an increasingly automated world?
Manual machining is cost-effective, versatile, and provides flexibility when you need custom or small batch production. It’s also a more hands-on approach, which some businesses find valuable.
Manual machines allow for a lot of creativity and flexibility. They’re ideal for small jobs, prototypes, or parts that don’t require high-volume production. And since they are less expensive, they’re accessible to smaller shops and businesses.
Lower Upfront Cost
Manual machines are much cheaper to purchase and maintain compared to CNC machines, which makes them a good option for businesses just starting out or those that only need a small number of parts.
Flexibility and Customization
With manual machines, an operator can quickly adjust the settings or make a manual tweak, which can be a big advantage when you need to produce custom, one-of-a-kind parts.
Ideal for Prototyping
Manual machining is ideal for prototyping and low-volume production. If you’re designing a new part or testing a new idea, the ability to quickly adjust settings and make changes on the fly without waiting for reprogramming makes manual machining invaluable.
What are the Disadvantages of Manual Machines?
While manual machines have their advantages, they also come with some limitations. So, what are the downsides of relying on manual machines for your projects?
Manual machines can be slower and less precise than CNC machines, and they require skilled operators to ensure the parts are produced correctly.
Manual machining takes more time, especially for larger runs or parts with complex designs. Plus, there’s always the risk of human error, which can lead to inconsistencies between parts.
Slower Production Rates
Manual machines are more time-consuming because they require constant attention from an operator, making them less ideal for mass production.
Inconsistency and Error
Since manual machining relies heavily on human input, it’s more prone to errors and inconsistencies, especially over long production runs.
What are the Advantages of Employing CNC Machines Over Manual Machines?
The decision to choose CNC over manual machines can make a huge difference in the efficiency and quality of your operation. But why should you invest in CNC machines if you already have manual options?
CNC machines offer automation, precision, and the ability to handle high-volume production without sacrificing quality, which makes them a smart investment for modern manufacturing.
CNC machines can easily scale production without compromising accuracy or efficiency, which is something manual machines often struggle with.
| Advantage | CNC Machining | Manual Machining |
|---|---|---|
| Scalability | Can easily scale up production for large orders. | Limited scalability for larger jobs. |
| Automation | Reduced human error with automated operations. | High risk of error and inconsistency without automation. |
| Production Speed | Faster for high-volume production. | Slower for large quantities. |
Scalability and Efficiency
Once a CNC machine is programmed, it can quickly switch from producing one part to another, making it ideal for large production runs where efficiency and consistency are key.
Reduced Human Error
Since CNC machines are programmed to follow exact instructions, they reduce the potential for human error. This ensures that every part is identical, which is especially important in industries that require tight tolerances.
What is a Disadvantage of CNC Machines Compared to Manual Machines?
Despite their many benefits, CNC machines also come with certain challenges. So, what’s the downside to opting for CNC over manual machines, and how significant are these challenges?
CNC machines are expensive to set up, require skilled operators, and may not always be cost-effective for small runs or custom projects.
CNC technology comes with a high price tag, and while it’s great for large-scale production, it might not be the best fit for smaller jobs or businesses that don’t need to produce parts in bulk.
| Disadvantage | Manual Machines | CNC Machines |
|---|---|---|
| Cost | Lower cost, more accessible to small businesses. | High initial and setup costs. |
| Flexibility | Highly flexible for custom work. | Less flexible for custom, low-volume work. |
High Setup Costs
The cost of purchasing a CNC machine and getting it properly programmed can be prohibitively high, especially for smaller businesses or those with tight budgets.
Complex Setup and Operation
Programming CNC machines can take time, and ensuring that everything is set up properly requires expertise. For small jobs, this can be inefficient and costly.
Why Would You Run a Manual Machine Rather Than a CNC Machine?
There are times when a manual machine is the better option. But what exactly makes manual machines a more appealing choice for certain projects?
Manual machines are cheaper, more flexible, and ideal for smaller, customized jobs. If you’re working with one-off parts or prototypes, manual machining can be your best bet.
For some businesses, manual machines offer a more cost-effective solution, especially when you need to create parts that are unique or low in quantity.

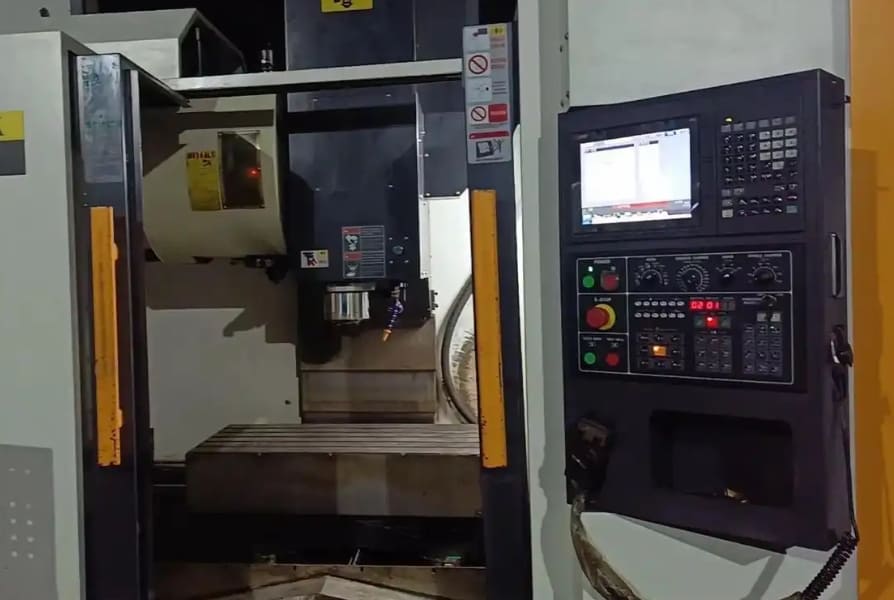

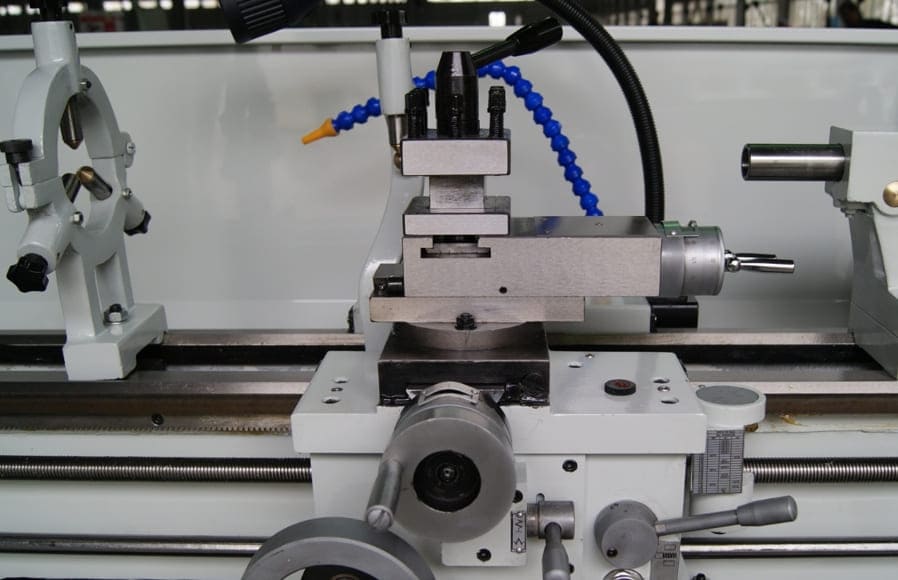

What is the Difference Between a Manual Lathe and a CNC Lathe?
Lathes are some of the most common machines in both manual and CNC machining. But what sets a manual lathe apart from a CNC lathe, and how does each perform?
A manual lathe requires hands-on operation by a skilled technician, while a CNC lathe automates the process with pre-programmed instructions, offering more precision and speed.
Manual lathes are ideal for simple jobs or small batches, while CNC lathes are used for more complex parts that need to be produced at a high rate with consistent quality.
Flexibility of Manual Lathes
Manual lathes provide a high level of flexibility, allowing operators to make quick adjustments and perform custom work.
Speed and Precision of CNC Lathes
CNC lathes, on the other hand, are fast and precise, making them perfect for large-scale production runs or intricate designs.
Which is More Frequently Used in Modern Manufacturing, CNC or Manual Machines?
If you’ve been wondering which type of machine dominates the modern manufacturing world, you’re not alone. The trend toward automation has been growing, but does that mean manual machines are becoming obsolete?
CNC machines are far more common in modern manufacturing due to their automation, speed, and precision. However, manual machines are still widely used for custom or small-batch production.
The demand for CNC machining is on the rise, but manual machines are far from obsolete. They still hold a valuable place in certain industries where customization and flexibility are key.
Are Manually Operated Machines Safer Than CNC Machines?
Safety is always a top priority in any manufacturing environment, so you might be wondering: Are manual machines safer than CNC machines, or is automation a better choice?
Manual machines can be more dangerous due to human error and lack of safeguards, while CNC machines are generally safer thanks to built-in safety features and automated processes.
While CNC machines are not completely risk-free, their automated nature often means fewer opportunities for human error, which can lead to accidents.
Which Machining Process is More Accurate?
Precision is the cornerstone of successful machining. But which process delivers the most accurate results? Let’s dive into the accuracy debate between CNC and manual machining.
CNC machining is far more accurate than manual machining due to its automated processes and computer-driven controls.
CNC machines can perform tasks with pinpoint accuracy, eliminating human error, while manual machines can be prone to small variations depending on the operator’s skill level.
Conclusion
Choosing between CNC and manual machining depends on your specific needs. CNC Machining is ideal for high-volume, precise production, while manual machining remains a versatile, cost-effective option for smaller, custom jobs.
-
A CAD (Computer-Aided Design) model is crucial in the CNC process because it defines the exact specifications of the part to be manufactured. Clicking the link will give you access to in-depth resources about how CAD works and its role in precision machining. ↩
-
CAM (Computer-Aided Manufacturing) software converts CAD models into machine instructions. By understanding how CAM works, you can optimize machining processes for better efficiency, quality, and cost savings. ↩
