What is boring machining?

Boring machining is an essential process in precision manufacturing. It may seem simple, but many people overlook its significance. Without it, producing high-precision holes would be nearly impossible, affecting the quality and functionality of parts.

Boring machining involves enlarging and finishing existing holes with high precision. This process refines hole dimensions and improves surface finish for parts that require extreme accuracy.

In this post, I’ll walk you through everything you need to know about boring machining, from the process steps to its application in various industries.

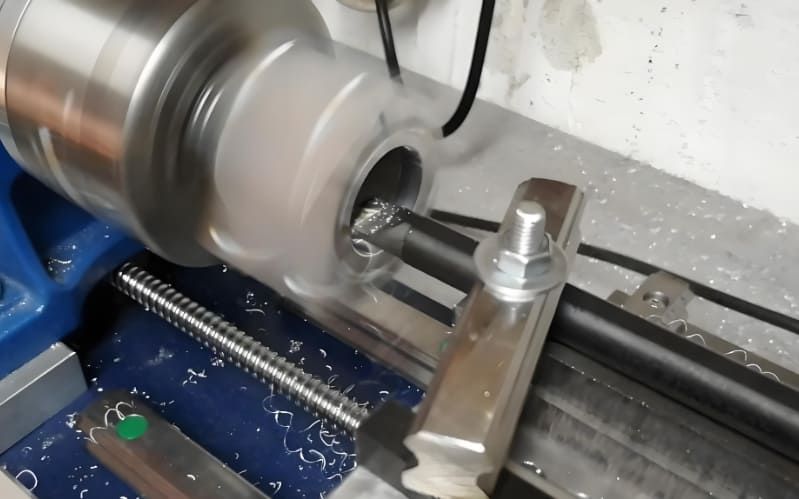

What is boring machining process step by step?

Have you ever wondered what happens after drilling a hole? Is there more to the process than just punching a hole through a material? In the world of precision manufacturing, boring machining is the key to achieving the accuracy and surface quality required for many high-performance parts.

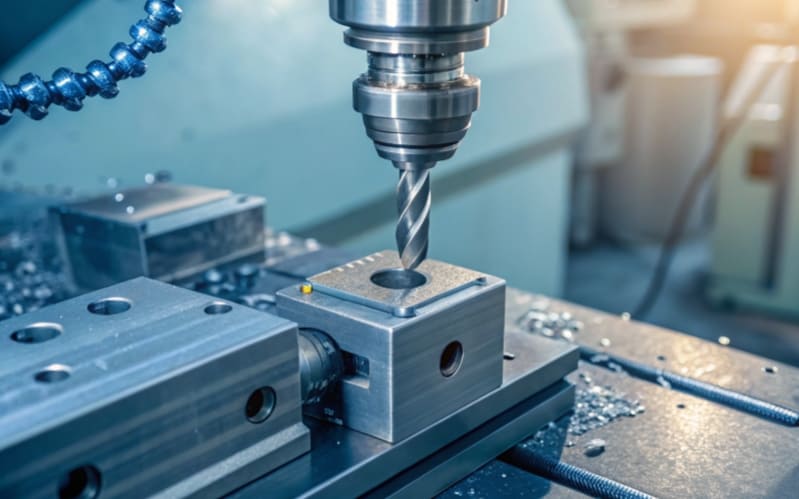

The boring process typically involves setting up the workpiece, selecting the right tool, aligning the machine, and then machining the hole to its final dimensions. The process is repeated until the desired tolerance and surface finish are achieved.

The boring process is iterative and requires several careful steps to achieve the desired result:

1. Workpiece Setup: The first step involves securely clamping the workpiece in the machine to ensure stability. The workpiece must be precisely positioned to ensure accurate boring operations.
2. Tool Selection: The right boring tool must be chosen based on factors such as the material of the workpiece, the size of the hole, and the required tolerance. A tool that works well for a soft material may not be suitable for harder metals.
3. Machine Alignment: The machine is calibrated to ensure that the boring tool aligns correctly with the hole. Accurate alignment is crucial to achieve precise hole dimensions and smooth finishes.
4. Initial Passes: The boring tool is introduced to the hole, and the machine performs several rough cuts to enlarge the hole to a general size. This step removes most of the material.
5. Final Passes: After the rough cuts, finishing passes are made. These finer cuts ensure that the hole dimensions are exact, and the surface finish is smooth and free from imperfections.

This multi-step process is crucial in industries where precision and tolerance are non-negotiable, such as aerospace and automotive manufacturing.

What are the three most important factors for successful boring process?

When it comes to boring, it’s not just about having the right machine. In fact, there are three fundamental factors that influence the success of the process. Ignoring any of these could lead to poor-quality results that are costly and time-consuming to fix.

Tool choice determines the quality of the cut, cutting speed affects the finish and efficiency, and machine rigidity ensures precision and prevents vibrations during operation.

These three factors are interdependent, and their balance is key to achieving the desired results:

• Tool Choice: The boring tool must be selected based on the Material type and the hole’s required size. Tools like single-point or multi-point cutters are chosen for their cutting efficiency and surface finish quality. A poorly selected tool can lead to excessive wear or an inaccurate hole.

• Cutting Speed: Cutting speed refers to the rotational speed at which the tool cuts through the material. Too high a speed can result in overheating and tool wear, while too low a speed can increase the cutting time and affect the hole’s surface finish.

• Machine Rigidity: A rigid machine setup reduces the chance of vibrations, which could otherwise cause errors like dimensional inaccuracies or rough surfaces. The stiffness of the machine structure and the precision of the spindle are critical in maintaining dimensional accuracy.

By carefully managing these factors, manufacturers can minimize errors, reduce tool wear, and achieve high-quality results in less time.

What is the application of a boring machining?

Precision machining plays a vital role across a range of industries, and boring is no exception. Whether you’re working in aerospace, automotive, or oil & gas, boring is crucial for achieving the high tolerances required in these fields. But what makes boring such a versatile and widely-used process?

Boring is primarily used in industries such as automotive, aerospace, and oil & gas. It’s essential for creating highly accurate holes for parts that require tight tolerances and high-quality finishes.

Boring’s versatility is due to its ability to create high-precision holes that are critical in various applications:

• Automotive Industry: In automotive manufacturing, boring is used to create precise holes in engine blocks, transmission components, and cylinder heads. The accuracy of these holes ensures smooth engine operation and optimal performance. For instance, engine cylinders must be precisely aligned to maintain compression and reduce wear.

• Aerospace Industry: Boring is essential for structural integrity in the aerospace sector. Components like turbine housings, airframe parts, and engine components require extremely high tolerance levels to ensure safety and performance. Any deviation in hole size or alignment could lead to catastrophic failure.

• Oil & Gas Industry: In this industry, boring is used to create holes for downhole tools, casing, and other critical components. The process ensures that these parts can withstand extreme pressures and environmental conditions while maintaining high structural integrity.

• Medical Industry: Precision boring is also used in the creation of medical implants, surgical instruments, and equipment that require flawless manufacturing for proper functionality.

By enabling the production of complex parts with exacting requirements, boring is indispensable in fields where performance and safety depend on perfect precision.

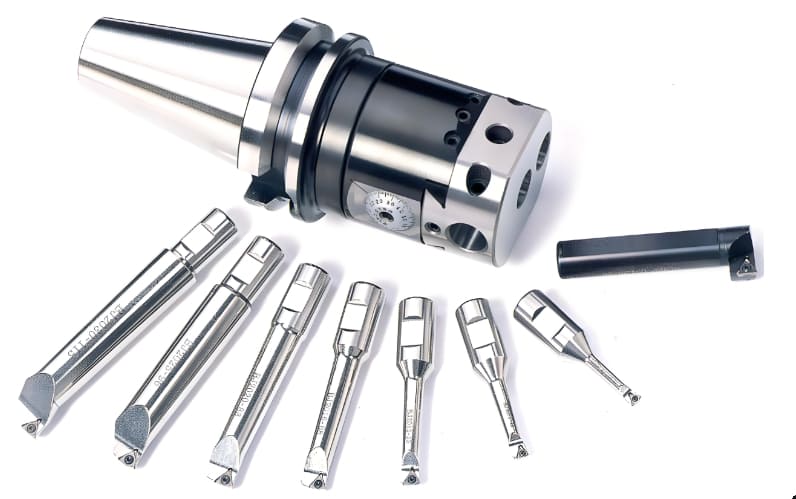

What are six boring tools?

When it comes to boring, having the right tools is essential for achieving the best results. But with so many tools available, how do you know which ones are right for your project? Do you need a specialized tool or can you rely on a standard one? Let’s break it down.

The six most common boring tools are the single-point tool, multi-point tool, end mill, reamer, boring head, and insert tool. Each tool has its specific use based on the type of hole and material.

1. single-point tool: A single-point tool is ideal for boring small to medium holes with high precision. It is commonly used in manual machines and offers great control over the material removal process.

2. multi-point tool: Multi-point tools are ideal for faster material removal. These tools, such as the indexable insert tools, feature several cutting edges that can remove more material in one pass, making them efficient for larger holes.

3. End Mill: End mills are versatile tools that can be used for both boring and milling operations. They are designed to cut along both the side and the end of the tool, making them effective for a wide range of boring tasks.

4. Reamer: Reamers are used for finishing holes to a high level of accuracy. They are excellent for achieving tight tolerances and smooth surfaces, particularly when working with hard metals or materials that require extra precision.

5. Boring Head: A boring head is a tool holder with adjustable cutting tools that allows for precise control over the size of the hole. It’s often used in CNC machines and is ideal for achieving fine tolerances in larger parts.

6. Insert Tool: These tools are equipped with replaceable inserts, allowing for quick changes without having to replace the entire tool. Insert tools are cost-effective and efficient, particularly for high-volume production environments.

Each of these tools plays a critical role in ensuring that the boring operation is tailored to the material and hole requirements, improving overall machining efficiency and precision.

How to choose the right boring process for your parts?

When you start a boring project, how do you know which process will best suit your needs? With so many options available, making the right choice can be overwhelming. Choosing the wrong boring method could lead to inefficiency, higher costs, or poor-quality results.

When choosing a boring process, you should consider factors like the part’s material, required hole tolerance, depth, and surface finish. Understanding these elements will help you select the most efficient and accurate process.

Key factors to consider include:

• Material Type: Harder materials may require slower cutting speeds or more rigid tools to prevent excessive wear or failure of the tool.

• Hole Tolerance: For holes that require tight tolerances, a finer boring process is necessary. Some processes like fine boring can achieve extremely tight dimensional control.

• Hole Depth: Deeper holes may require special techniques like deep-hole boring, which uses a combination of high-precision tools and specific machine capabilities to maintain accuracy over long depths.

• Surface Finish: If a smooth finish is needed, finishing boring tools or processes such as reaming should be considered after the initial boring operation.

Selecting the right process is crucial to not only meet dimensional requirements but also to ensure cost-efficiency and timely production.

Do you need to drill before boring?

You might be wondering: is drilling required before boring? It’s a question that many people ask, especially if they’re new to the machining world. The short answer is often yes, but let’s explore why that is.

In most cases, drilling is recommended before boring. Drilling helps to create the initial hole, making it easier for the boring tool to finish the hole to the required dimensions.

Drilling serves as a pre-operation to boring, providing the rough outline of the hole. Without it, the boring tool would have to start from scratch, leading to longer machining times and the potential for more errors. Additionally, drilling helps minimize the amount of material the boring tool needs to remove, improving tool life and operational efficiency.

By using a two-step approach, manufacturers can achieve highly precise and accurate holes, even in challenging materials or complex geometries.

How many types of boring machines are there?

You may be familiar with boring, but did you know there are different types of boring machines? Choosing the right one can be crucial to the success of your project. Are you using the right type of machine for your parts?

There are several types of boring machines, including horizontal boring machines, vertical boring machines, and CNC boring machines. Each type offers specific benefits based on the part being machined.

1. Horizontal Boring Machines: These are designed for larger parts that require high levels of stability during the boring process. Horizontal machines excel at boring large, heavy components like engine blocks and housings.

2. Vertical Boring Machines: Vertical boring machines are often used for smaller parts and offer high precision. Their design allows for easier access to the part and can be more efficient for short runs or smaller holes.

3. CNC Boring Machines: CNC boring machines are automated and offer the highest precision and repeatability. These machines are ideal for high-volume production and for parts with complex geometries and tight tolerances.

Each type of machine is suited to different manufacturing needs, and selecting the right one can significantly impact the efficiency, accuracy, and cost of the project.

What is the T-shaped tool for boring holes?

When you’re boring a hole, sometimes you need more than just a basic tool. In specific applications, a T-shaped tool can make all the difference. But what exactly does this tool do, and when should you use it?

The T-shaped boring tool is designed for creating specific hole shapes, such as counterbores or certain types of stepped holes. Its unique shape allows for better control and accuracy during the boring process.

This tool’s distinctive T-shape is ideal for creating stepped holes where different diameters are required at different depths. The design allows for better positioning and increased control over the depth and size of each step, ensuring high accuracy.

T-shaped tools are often used in situations where multiple steps or countersinks are required, ensuring precision without unnecessary material removal.

What is the difference between drilling and boring?

Drilling and boring are both used to create holes, but they serve different purposes. How do you know when to drill, and when to switch to boring? Let’s explore the key differences between these two processes.

Drilling is used to create the initial hole, while boring is used to enlarge and finish the hole with greater precision. Drilling removes a large amount of material, while boring focuses on fine-tuning the dimensions and surface finish.

Drilling typically involves the removal of large volumes of material using a rotary cutting motion. The drill bit usually has a pointed tip that helps to guide it into the material, creating a relatively rough hole. On the other hand, boring is a finishing process that comes after drilling. Boring tools, like single-point tools or reamers, are used to smooth and enlarge the hole to achieve a high level of precision, both in terms of size and surface finish.

What is the difference between milling and boring?

Milling and boring are both important machining processes, but they’re used for different purposes. So, what exactly sets them apart? Are they interchangeable, or do they serve unique functions?

Milling is a process where material is removed from a part’s surface using rotary cutters. Boring, on the other hand, is specifically used to enlarge or finish holes. Milling is more versatile, while boring is precision-focused.

While both processes remove material from a workpiece, the way they do so and their intended applications are different:

• Milling: This process is highly versatile and can be used for a wide range of operations beyond just creating holes. Milling uses rotating cutters to remove material, and it can shape parts in two or three dimensions. It is often used for creating complex geometries, flat surfaces, or slots in addition to drilling holes.

• Boring: Boring is primarily focused on enlarging or refining holes. Unlike milling, which can remove material from various surfaces, boring is dedicated to increasing hole diameter and improving precision. It’s typically used after drilling to achieve the exact size and finish required for high-precision parts.

Conclusion

Boring machining is a precise, essential process in modern manufacturing, crucial for creating high-quality parts with tight tolerances. Understanding its applications, tools, and differences from other processes helps ensure successful outcomes in your projects.
